Features and Benefits:
- Automatic Pressure Booster.
- Maintains pre-set water pressure for consistent water supply.
- Stainless steel corrosion resistant construction.
- Designed to supply consistent water pressure without the use of a tank.
- Single voltage motor 115V.
HP: 1 1/5
Voltage: 110-120
AMP: 10
Discharge NPT (In): 1

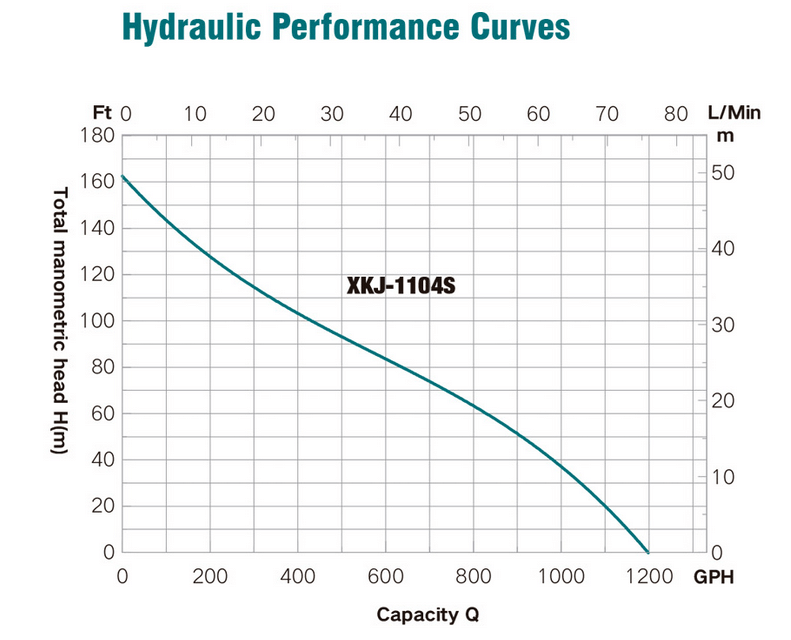

GPH of Water @ Total Ft of Head: 0t = 1210, 20ft = 1100, 40ft = 980, 60ft = 850, 80ft = 640, 100ft = 450
Max Head Ft: 164

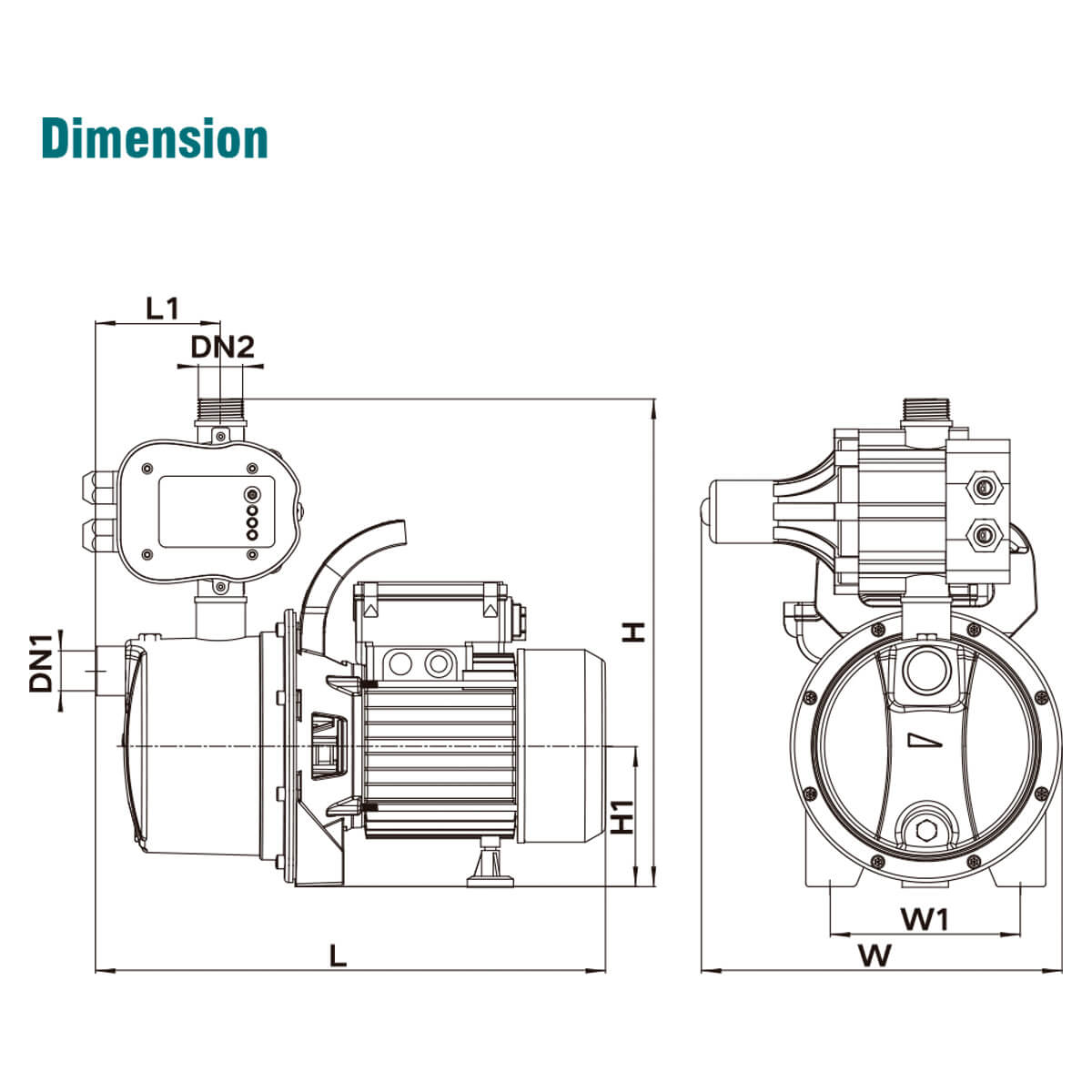

Dimension:
L (mm) = 379.5
L1 (mm) = 92
H (mm) = 404.5
H1 (mm) = 103
W (mm) = 265
W1 (mm) = 140
DN1 - NPT1
DN2 - NTP1
