The most common use of a float valve is to control the filling of livestock water tanks and water tower cooling tanks as well as many other automatic tank filling applications.

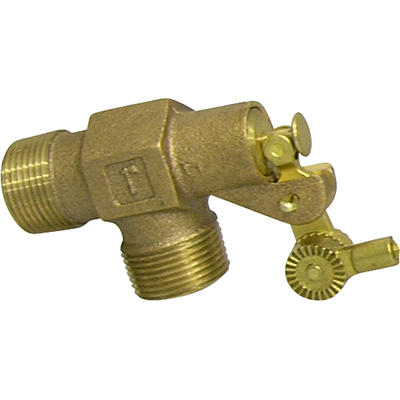

Description: SMT connection is straight male thread with a gasket and nut
Inlet Size 1/2"
Outlet Size 1/2"
Design Standard
Rod Connection 1/4" - 20 SAE
Inlet Connection MPT
Primary Material Brass
Outlet Connection MPT
Temperature Range Up to 180°F (82°C)
Maximum Pressure Rating 125 PSI
Dimensions
Width: 2.80 in
Height: 1.15 in
Length: 3.35 in
Weight: 0.57 lb
Certifications
No Lead
NSF / ANSI 372
