Features and Benefits:
- High flow effluent pump.
- Easily replaces all professional grade tethered pumps.
- Heavy duty cast iron volute.
- Durable cast iron construction.
- Oil-filled permanent split capacitor motor and built in automatic thermal overload protector.
- Integral 10ft piggy back float switch for automatic operation.
- Application with up to 3/4" diameter solids.
- 2"NPT discharge.
HP: 1/2
Volt/PH: 120/1
HZ: 60
RPM: 3450
AMPS: 7.8

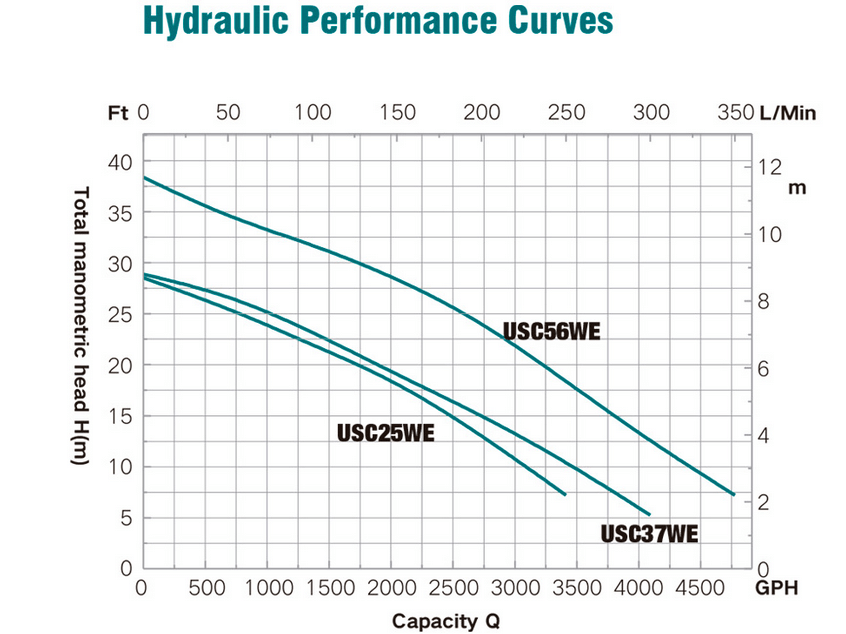

GPH of Water @ Total Ft of Head: 5ft = 4750, 10ft = 4030, 15ft = 3170, 20ft = 2200, 25ft = 1200
Max Head Ft: 28.5

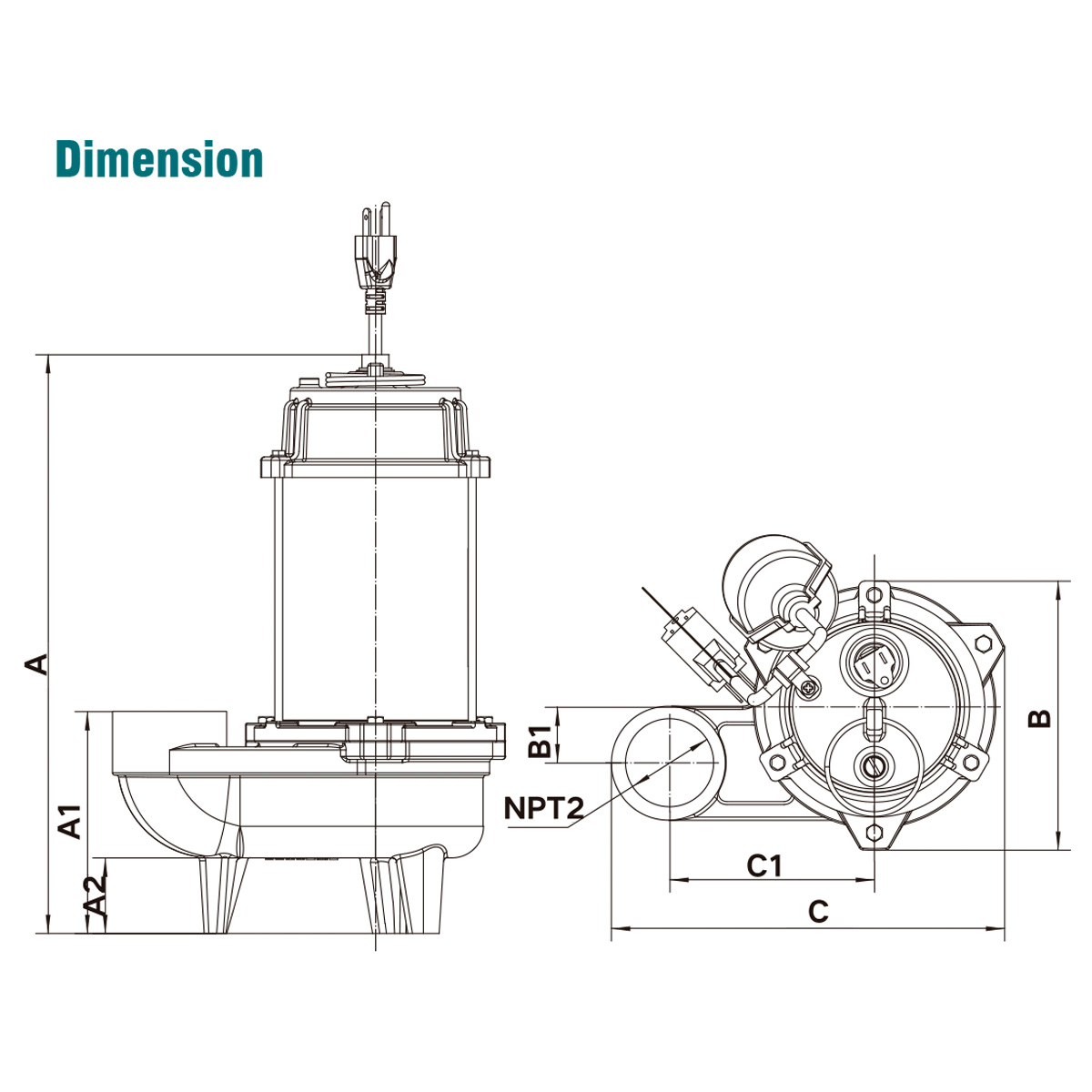

Dimension:
DN1 = NPT2
A (In) = 14.53
A1 (In) = 5.55
A2 (In) = 1.89
B (In) = 6.73
B1 (In) = 1.4
C (In) = 9.84
C1 (In) = 5.12
