Features and Benefits:
- Top Suction Design helps eliminate air locks and filters debris.
- Silent sump pump design reduces sound while pumping.
- Reliable performance without the noise.
- 10’ Piggy back tethered or integral snap-action float switch for automatic operation.
- Easily replaces all tethered or snap action float switch pumps.
- Cast iron base for long life durability and prevents pump from moving around in the pit.
- Stainless steel motor shell with durable cast iron volute.
- Oil-filled permanent split capacitor motor and built-in automatic thermal overload protector.
- For use in 14” diameter or larger sump basins.
- 1-1/2” discharge.
HP: 1/3
Voltage: 115V
AMP: 4.5A
Oil Filling Capacity: 800mL
Discharge NPT (In): 1-1/2"

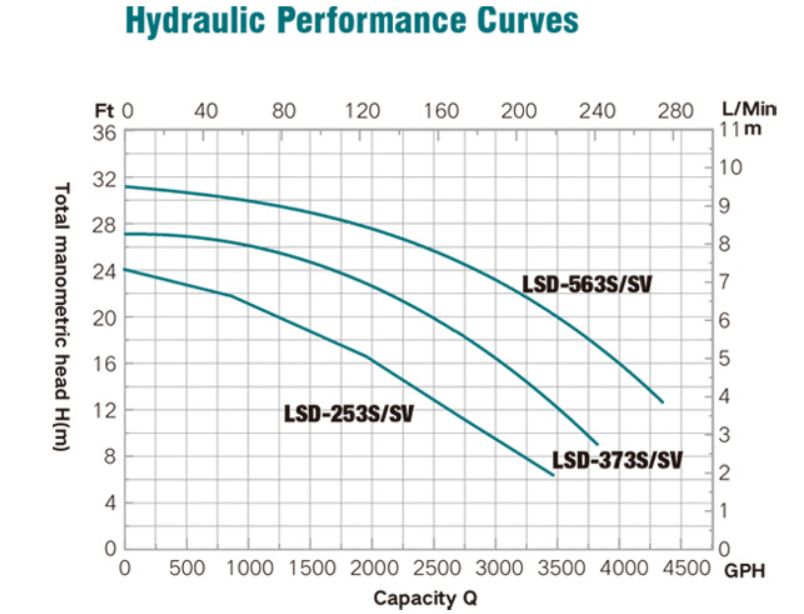

GPH of Water @ Total Ft of Head: 5ft = 3300, 10ft = 2800, 15ft = 2000, 20ft = 750,
Max Head Ft: 22

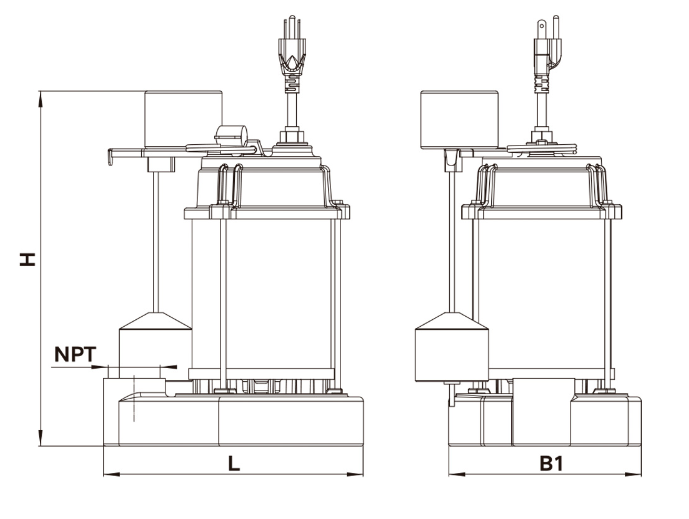

Dimension:
H (mm) = 325
L (mm) = 236
B1 = 175
NPSC (In) = 1-1/2
