Features and Benefits:
- Top Suction Design helps eliminate air locks and filters debris.
- Vertical float switch for automatic operation.
- Easy access handle designed for easy portability.
- Corrosion-resistant, reinforced thermoplastic construction.
- Oil-filled permanent split capacitor motor and built-in automatic thermal overload protector.
- For use in 14"diameter or larger sump basins.
- 1-1/2 NPT discharge with 1-1/4"NPT adapter included.
HP: 1/3
Voltage: 115V
AMP: 4.6A
Oil Filling Capacity: 420mL
Discharge NPT (In): 1-1/2"

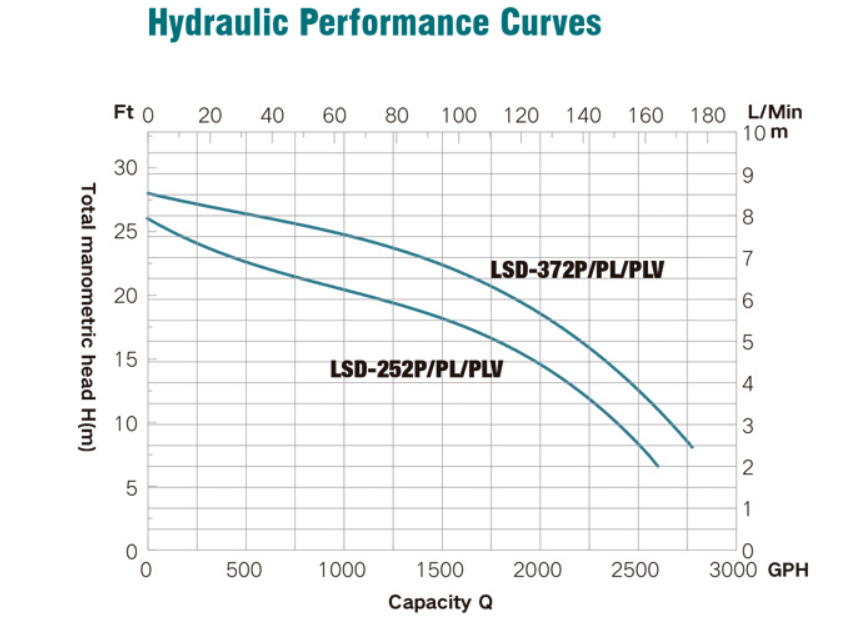

GPH of Water @ Total Ft of Head: 5ft = 2560, 10ft = 2300, 15ft = 1900, 20ft = 1000, 25ft = 100
Max Head Ft: 28

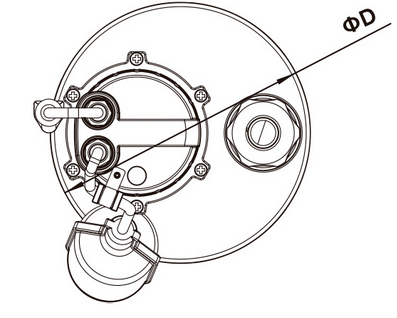

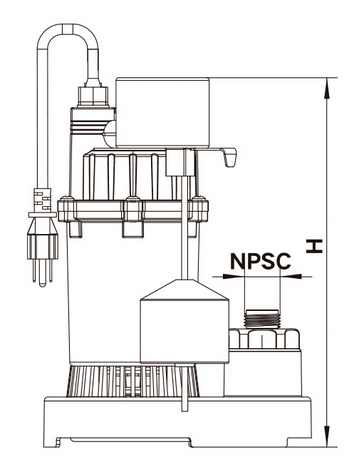

Dimension:
H (mm) = 270
D (mm) = 201
NPSC (In) = 1-1/2-11.5
