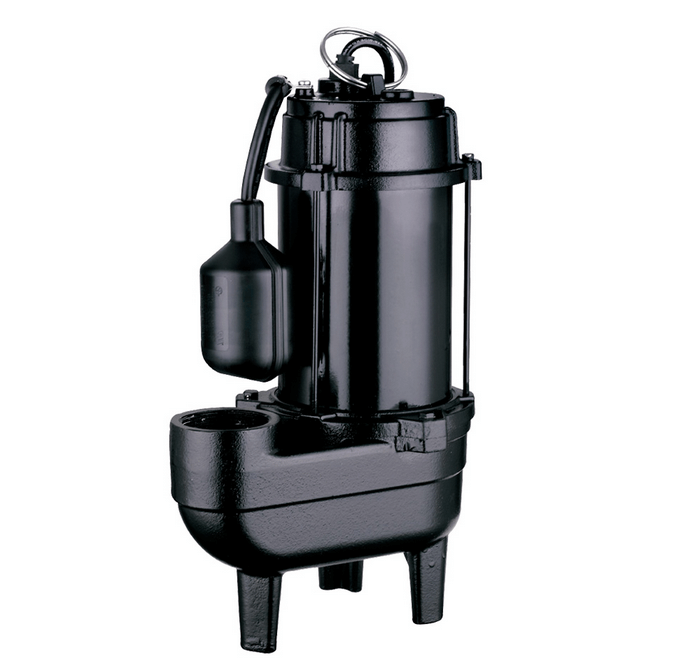

Features and Benefits:
- Durable cast iron construction.
- Plastic non-clog vortex impeller.
- Oil-filled permanent split capacitor motor and built-in automatic thermal overload protector.
- Work with 10ft piggy back tethered float switch for automatic operation.
- Application with up to 2" diameter solids.
- Ideal for basements or below grade installations.
- 2” NPT discharge capable for handing up to 2" diameter solids.
HP: 3/4
Volt/PH: 120/1
HZ: 60
RPM: 3450
AMPS: 10

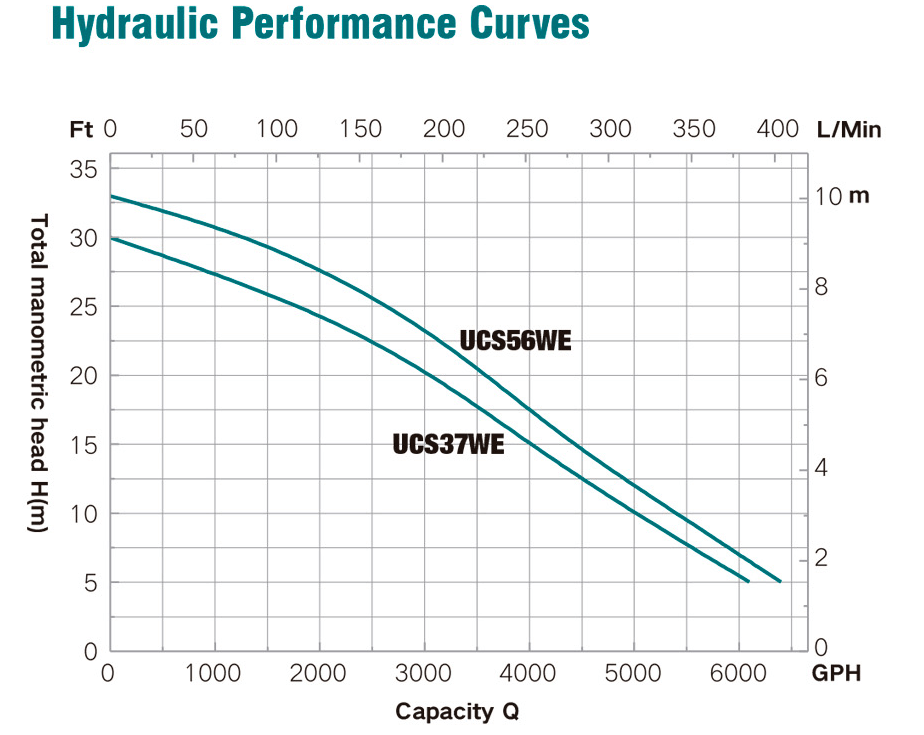

GPH of Water @ Total Ft of Head: 5ft = 6100, 10ft = 5000, 15ft = 4000, 20ft = 3100, 25ft = 1900
Max Head Ft: 33

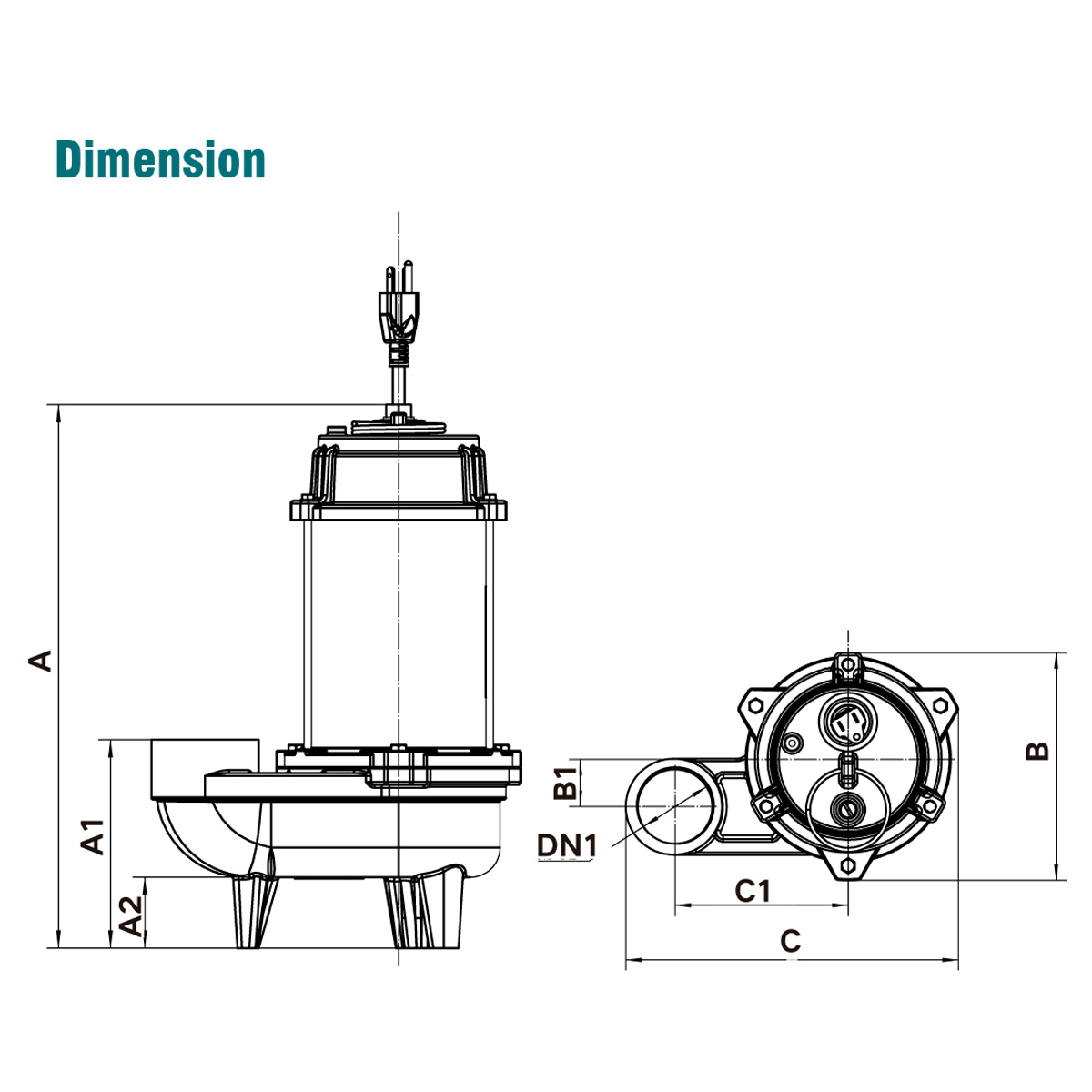

Dimension:
DN1 = NPT2
A (In) = 15.94
A1 (In) = 6.61
A2 (In) = 2.17
B (In) = 6.73
B1 (In) = 1.4
C (In) = 9.84
C1 (In) = 5.12
