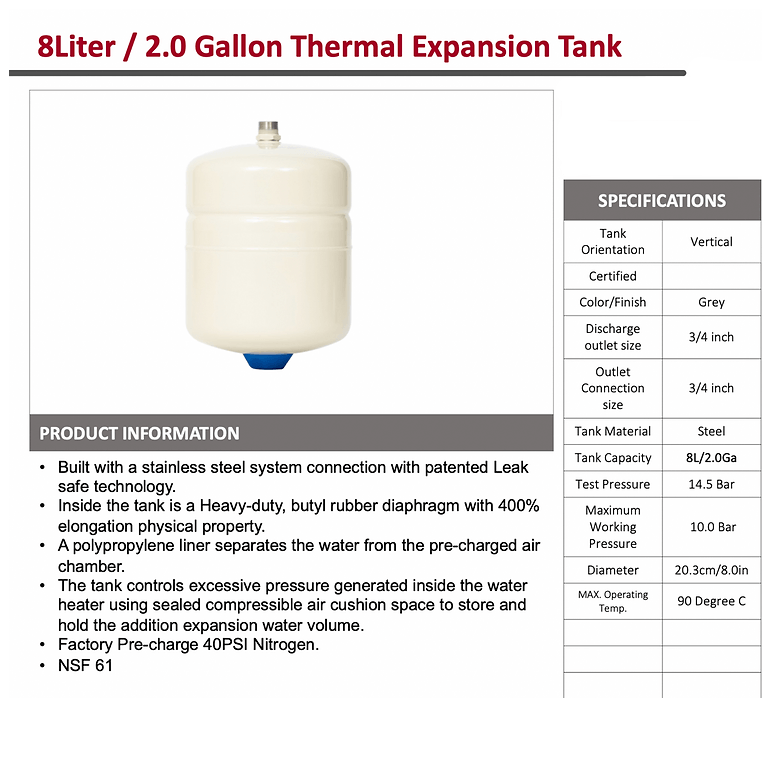

Product Information:
- Built with a stainless steel system connection with patented Leak safe technology,
- Inside the tank is a heavy-duty butyl rubber diaphragm with 400% elongation physical property.
- A polypropylene liner separates the water from the pre-charged air chamber.
- The tank controls excessive pressure generated inside the water heater using sealed compressible air cushion space to store and hold the addition expansion water volume.
- Factory pre-charge 40 PSI nitrogen.
- NSF 61.
Specifications:
Tank Orientation: Grey
Discharge Outlet Size: 3/4"
Outlet Connection Size: 3/4"
Tank Material: Steel
Tank Capacity: 8L/2.0Ga
Test Pressure: 14.5 Bar
Maximum Working Pressure: 10.0 Bar
Diameter: 20.3cm/8.0"
Max Operating Temperature: 90 Degree C
